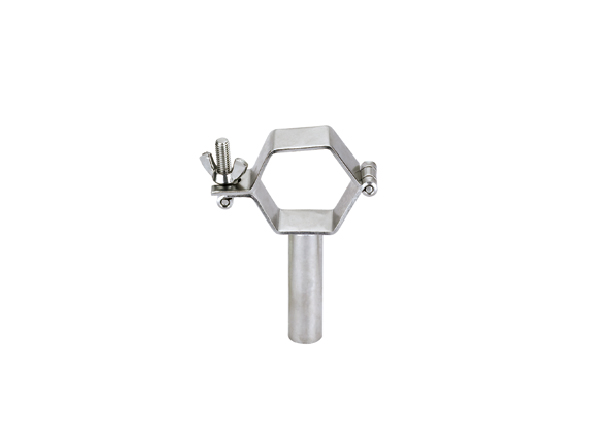

Sanitary Hexagonal buckle pipe holder parameters
Support material: 304, 316L stainless steel
Surface treatment: mirror polishing, pickling passivation surface treatment technology
Optional structural design: adjustable bracket, fixed bracket, hanger bracket, clamp bracket, internal support bracket
Pipe size adaptation: DN15, DN25, DN50, DN100
Support size: 40mm, 50mm, 75mm, 100mm
Normal operating temperature: -20°C to +150°C, suitable for most food, beverage, chemical and other industries.
Normal working pressure: 0.1MPa to 2.5MPa
Sealing material: food grade silicone, fluorine rubber (FKM) or EPDM
Certification and standards: 3A certification, FDA certification, EHEDG certification, CE certification
Application field
Food industry: Used for pipeline support in food production lines to ensure the stability and hygiene of pipelines when transporting liquid, powder and other materials.
Beverage industry: Suitable for supporting and fixing beverage production pipelines to ensure smooth liquid flow without affecting product quality.
Pharmaceutical industry: Used for the stable support of drug production pipeline system, to ensure the health requirements of the pipeline in the drug production process.
Chemical industry: Suitable for the support of chemical pipelines, can withstand the corrosion and pressure generated in the process of chemical transportation.
