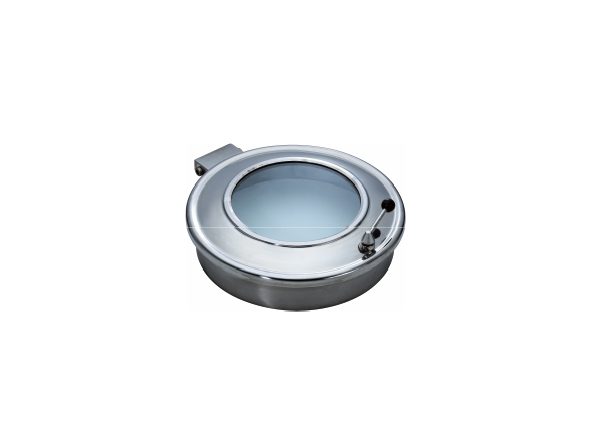

Sanitary large glass normal pressure manhole parameters
Material: 304, 316L stainless steel
Seal material: Food grade silicone, fluororubber (FKM), EPDM.
Surface treatment: Mirror polishing, pickling and passivation treatment
Pipe connection size: DN50, DN80, DN100, DN150
Manhole size: 6", 8", 10", 12", etc.
Manhole cover size: round, square or oval, can be customized according to actual needs
Common working pressure: PN6, PN10, PN16, can be customized according to actual needs
Normal working temperature: -20°C to +150°C, suitable for most food, beverage, and chemical production environments.
Dimensions: Customizable according to the installation location and container size
Sealing method
Clamping seal: The clamping ring and bolts are used to compress the sealing ring to provide a strong seal, suitable for environments with higher pressure.
Spiral seal: The spiral structure and gasket design can provide higher sealing performance, suitable for high pressure and high temperature occasions.
Clamp seal: The cover is quickly fixed by the clamp, which is convenient for disassembly and is suitable for manholes that need to be opened and closed frequently.
Certification standards: 3A, FDA, EHEDG, CE
Application areas
Food industry: For openings of pipes, tanks or containers in food processing
Beverage industry: For inspection and cleaning of equipment in beverage production
Pharmaceutical industry: For openings of containers, tanks or pipes in pharmaceutical production lines
Chemical industry: For inspection and cleaning in chemical reactors or tanks
