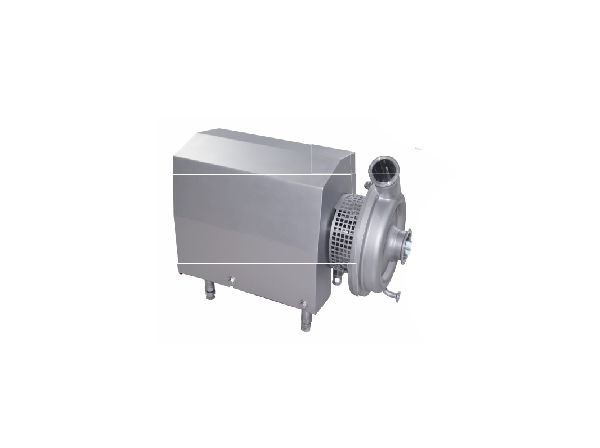

Sanitary food self-priming pump parameters
Pump body material: 304, 316L stainless steel
Liquid contact parts (such as impeller, shaft, seal, etc.): stainless steel, ceramic, silicon carbide food grade, corrosion-resistant materials
Seal material: food grade silicone, fluororubber (FKM), EPDM
Optional types
Centrifugal pump: suitable for conveying low viscosity liquids such as water, juice, dairy products, etc.
Gear pump: suitable for higher viscosity fluids such as oil, dairy products, syrup, etc.
Diaphragm pump: suitable for slurry, suspension or high viscosity fluid
Piston pump: suitable for precision metering and high pressure delivery, commonly used in chemical, pharmaceutical and other industries
Flow range: 5L/min, 20L/min, 50L/min, 100L/min, etc.
Pump body size: body diameters are DN25, DN50, DN100, etc., can be customized according to needs
Normal working pressure: 0.5MPa to 1.6MPa (about 5-16 bar)
Normal working temperature: -20°C to +150°C, suitable for conveying most foods, beverages, and chemicals.
Standard speed: 1450 RPM (revolutions per minute) or 2900 RPM
Certification standards: 3A certification, FDA certification, EHEDG certification, CE certification
Application areas
Food industry: used for the delivery of liquids or semi-fluids such as dairy products, juices, sauces, and condiments
Beverage industry: used for liquid delivery in the beverage production process
Pharmaceutical industry: used for precision liquid delivery in pharmaceutical production lines.
Chemical industry: used for the delivery of chemicals, especially in situations where high corrosion resistance is required for chemicals.
Pump body size: The body diameter is DN25, DN50, DN100, etc., which can be customized according to needs
