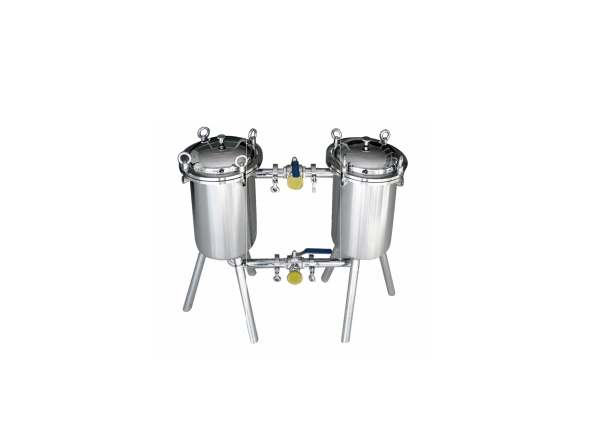

Sanitary duplex filter parameters
Filter body material: 304, 316L stainless steel
Filter element material: stainless steel mesh, polyester, nylon, stainless steel wire mesh, activated carbon and other materials are used according to filtering requirements.
Surface treatment: mirror polishing, pickling and passivation treatment to ensure smooth surface without dead corners
Filter element size: 10", 20", 30", 40", etc.
Filter accuracy range: 1 micron to 100 microns (5μm, 10μm, 25μm, 50μm)
Filter dimensions: The dimensions are customized according to the flow rate and application requirements
Connection method
Clamp connection: suitable for quick disassembly and installation (DN15, DN25, DN50)
Welding connection: suitable for occasions requiring higher sealing and stability
Flange connection: suitable for larger pipes
Threaded connection: suitable for small pipe systems
Working pressure range
Common working pressure: PN10, PN16
Working environment temperature: -20°C to +150°C
Filtration method
Surface filtration: directly filter solid particles in liquid or gas through the pore size on the surface of the filter element, suitable for more conventional liquid filtration.
Deep filtration: The filter element material or structure is denser, which can more effectively adsorb smaller particles or pollutants, suitable for more sophisticated filtration needs.
Multi-layer filtration: Designed with multi-layer filter elements or multi-stage filtration structures, it can provide more precise filtration effects and remove fine particles and impurities.
Filter type
Bag filter: Suitable for filtering liquids with larger particles. The filter bag can be replaced as needed, suitable for large flow filtration.
Cartridge filter: Commonly used in the food and beverage industry, suitable for small flow and high-precision filtration needs.
Plug-in filter: Suitable for small and medium-sized pipelines, the plug-in design is easy to install and replace.
Self-cleaning filter: With automatic cleaning function, it can reduce the frequency of manual maintenance and is suitable for more continuous filtration needs.
Standard certification: Comply with 3A certification, FDA certification, EHEDG certification, CE certification
Application areas
Food industry: used for filtration of liquids such as juice, beer, and beverages
Beverage industry: widely used for liquid filtration in beverage production lines.
Pharmaceutical industry: used for liquid and gas filtration in pharmaceutical production
Chemical industry: used for filtration of chemical liquids
