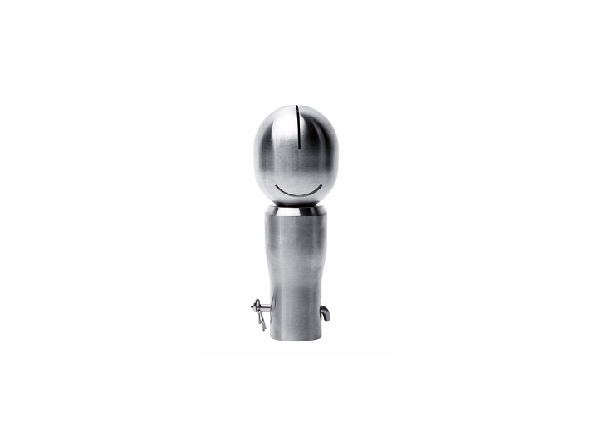

Sanitary Alfa Laval imitation pin rotating cleaning ball parameters
Ball material: 304, 316L stainless steel.
Surface treatment: mirror polishing, pickling and passivation, etc.
Sealing ring material: silicone, fluororubber food grade material
Normal working temperature: suitable for temperature range of -20°C to +150°C.
Normal pressure range: PN10, PN16, PN40, PN63
Ball diameter: 25mm to 200mm,
Common specifications: including DN15, DN25, DN50, DN100
Installation method
Clamp connection: The installation method is clamp connection, which is convenient for quick installation and disassembly, suitable for environments with frequent disassembly and cleaning.
Welding connection: used in a relatively fixed installation environment, suitable for occasions requiring higher sealing and stability.
Flange connection: suitable for larger pipes, providing a more stable and firm connection.
Application field
Food industry: used for pipe cleaning in food production lines, such as pipe cleaning of liquid foods such as dairy products, juice, beer, etc.
Beverage industry: used for cleaning beverage production lines to ensure the hygiene and cleanliness of liquid pipelines.
Pharmaceutical industry: used for pipeline cleaning in drug production to ensure compliance with GMP hygiene standards.
Chemical industry: used for pipeline cleaning in the chemical production process, especially in environments that need to prevent contamination and maintain high standards of hygiene.
