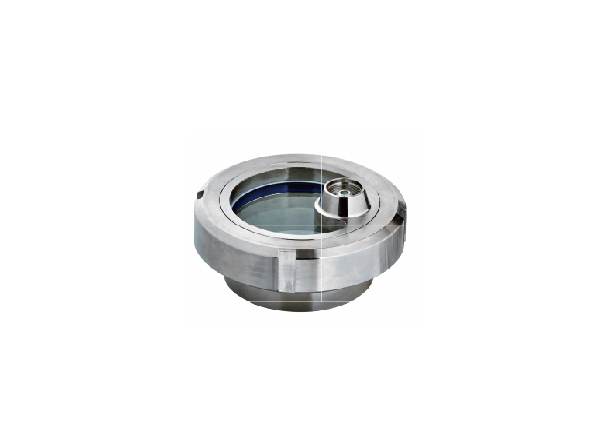

Sanitary sight glass parameters
Mirror material: 304, 316L stainless steel
Lens material: tempered glass, sapphire
Surface treatment: mirror polishing, pickling and passivation treatment
Liquid contact parts: All liquid contact parts are made of food-grade stainless steel, in line with hygiene standards (such as FDA, 3A certification)
Nominal pressure: Applicable to standard pressures such as PN10 and PN16
Sanitary certification: Meet the hygiene standards of the food, beverage, and pharmaceutical industries 3A certification, FDA certification, EHEDG certification
Connection standards: Meet DIN, SMS, ISO, Clamp, Tri-Clamp and other pipeline connection standards
Nominal diameter: 1/2" to 6" (customizable according to needs)
Pipeline connection size: DN15, DN25, DN40, DN50, etc.
Thickness: Between 1.5mm and 3mm, depending on pressure and application requirements
Lens size: Can be customized, ranging from 50mm to 200mm
Working temperature range: Applicable to -20°C to +150°C working environment, some models can withstand high temperatures up to +200°C or higher
Working pressure range: common working pressures are PN10, PN16
Installation method
Clamp installation: sealed connection through clamps and gaskets, suitable for scenes that require quick disassembly and cleaning
Welding installation: suitable for relatively fixed pipeline environments, providing stronger sealing through welding connections
Threaded installation: suitable for small-diameter pipelines, with relatively simple installation and disassembly methods
Flange installation: suitable for large-diameter pipelines, providing high-strength sealing performance and stability
IP level: IP65, IP67, to prevent the entry of external factors such as dust and water vapor
Application areas
Food industry: used for flow monitoring of liquid foods (such as dairy products, juice, beer, etc.) to ensure transparency and compliance with hygiene standards in the production process
Beverage industry: used for monitoring fluids in beverage production lines to avoid contamination and ensure the hygiene of the production line
Pharmaceutical industry: used for fluid observation in the production process of pharmaceuticals to ensure compliance with GMP requirements and avoid contamination
Chemical industry: used for monitoring chemical fluids, especially for flow monitoring of non-corrosive fluids
