Material: 304, 316L stainless steel
Surface treatment: mirror polishing, pickling, passivation
Material of sealing ring: usually made of silicone, fluororubber and other materials
Nominal pressure: PN10, PN16 and other standard pressures
Standard specification: in line with sanitary pipe standards DIN 11851, SMS 3008, ISO 2852, etc.
Certification: in line with 3A certification, FDA certification
Nominal diameter: 1/2" to 2" (customized according to needs)
Specifications: DN15, DN20, DN25, DN40, etc.
Wall thickness: common wall thickness is 1.5mm, 2mm, 2.5mm (customized according to needs)
Connection method
Clamp connection: The clamp connection method is adopted, which is easy to disassemble and clean, and is suitable for occasions where frequent disassembly and maintenance are required
Welding connection: Suitable for relatively fixed installation environments, providing stronger sealing
Threaded connection: Suitable for pipeline systems with smaller diameters or non-high-pressure environments
Flange connection: Suitable for large-diameter and high-pressure systems, with higher stability and sealing
Smooth inside and outside: Ra ≤ 0.8μm
Normal temperature range: -20°C to +180°C, suitable for most conventional fluids and environments
Conventional pressure range: PN10, PN16, up to PN40
Application areas
Food industry: used for sampling of food fluids (such as milk, juice, beer, etc.)
Beverage industry: used for sampling of raw materials and finished products in beverage production lines
Pharmaceutical industry: used for fluid sampling in the pharmaceutical production process
Chemical industry: used for sampling of chemical fluids
Common models

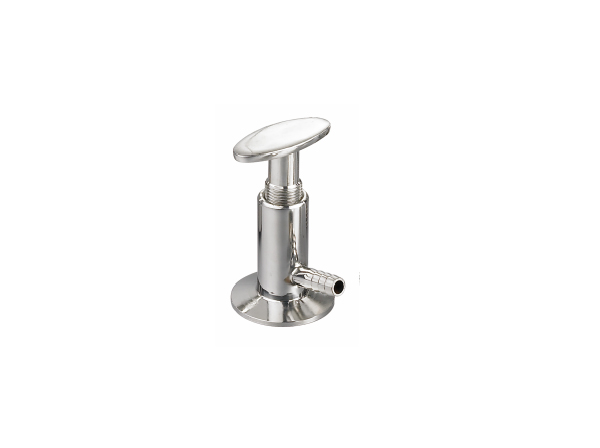

Manual sampling valve: controls the sampling flow rate by manually operating the valve, widely used in laboratories and production environments
Pneumatic sampling valve: uses pneumatic devices to control the opening and closing of the valve, suitable for production lines with a high degree of automation
Automatic sampling valve: used for automated sampling, usually equipped with sensors and control systems, suitable for automatic sampling in uninterrupted production processes
