Common materials: 304, 316L stainless steel
Surface treatment: mirror polishing, pickling, passivation
Standard certification: in line with sanitary standards DIN 11851, SMS 3008, ISO 2852
3A certification: in line with strict food hygiene requirements
FDA certification: in line with FDA requirements
Nominal diameter: 1/2" to 6" (customizable according to needs)
Applicable pipe standards: DN15, DN20, DN25, DN50, etc.
Width: 15mm, 20mm, 25mm (customizable according to needs)
Applicable pipe materials: used for pipe connections made of stainless steel, PVC, PE, etc.
Connection method

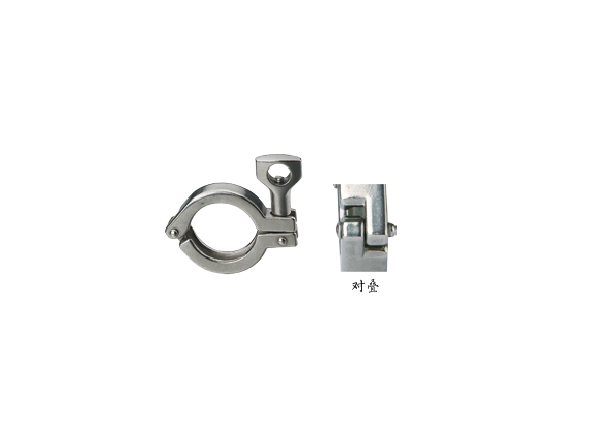

Clamp type (quick installation): the pipe is fixed by screws and clamp rings, which is easy to disassemble
Quick installation: pipe connection can be carried out without tools, which is convenient to install and saves time
With rubber gasket: the clamp is usually equipped with a high temperature and corrosion resistant rubber gasket
Ra value requirement: inner surface roughness Ra ≤ 0.8μm
Finish requirements: smooth surface, no burrs and irregular areas
Working temperature: -196°C to +600°C, suitable for conventional food and chemical fluid delivery.
Sanitary quick-release clamp: Suitable for scenes with quick installation and disassembly, widely used in occasions with high hygiene requirements
Sanitary welding clamp: Suitable for permanent pipeline connection, usually used for higher pressure and more stable pipeline systems
Sanitary three-way clamp: Used for pipeline branch connection to facilitate fluid distribution
Application areas
Food industry: Used for liquid and gas delivery pipeline systems
Beverage industry: Used for beverage production lines and fluid delivery pipelines
Pharmaceutical industry: Used for drug production and delivery
Chemical industry: Used for pipeline connection of chemical fluids
